We make it.
Approve the design and order the part. We print, finish, check and ship it. You pay for the part and nothing for the design.
Insole pair from €45 · check socket €120 · definitive socket from €340
Design it in your clinic. We make it.
Free software to design sockets and insoles on your scans. Order the part and we print it for you.
No licence, no seat fee
Check and definitive sockets
Insole pairs in TPU
Drag to turn
Design for free. Pay for what you take.
Designing, approving and changing a design cost nothing. When a design is ready, you choose how it leaves the studio.
You make it.
Download the STL, the print project and the report, and have the part made wherever you like. You pay a download fee and nothing else.
Insole pair €9 · check socket €19 · definitive socket €49
No licence
No seat fee
No subscription
Every revision free
Two studios. One patient record.
Every design starts from a case: the patient, the device and the scan, in one record your whole team can read.
From scan to fitting, in one line.
The studio records every change as an event, so the case file shows who did what, and when.
- You
Scan
Upload the scan as STL, OBJ or PLY. The studio checks the file and says what it found.
- You
Design
Rectify, lay the trimline and enter the wall, or shape the insoles foot by foot.
- You
Approve
Your signature makes the design final. Approving is free.
- Us
Price
We send one price for the part. You accept it, or you do not.
- Us
Make
Printed on our farm, finished, checked and packed for the clinic.
- You
Fit
The part arrives at the clinic. You fit it and close the case.
Waiting for a pricePrice readyAccepted
In our queueBeing printedFinishing
On its wayDeliveredFitted
Manufacturing
Made on machines we build, in a material we developed.
We design our own printers, measure every print profile on the machine that uses it, and record which machine made each part.
- printers of our own design, built to date
- 400+
- hours of printing done on our machines
- 190,000+
- lower density than the solid polymer, from the foaming in our own print process
- ≈23%
- deep, the clinic and patient lines cut into the sole of the insole
- 0.5mm
Sockets: our own carbon-fibre composite

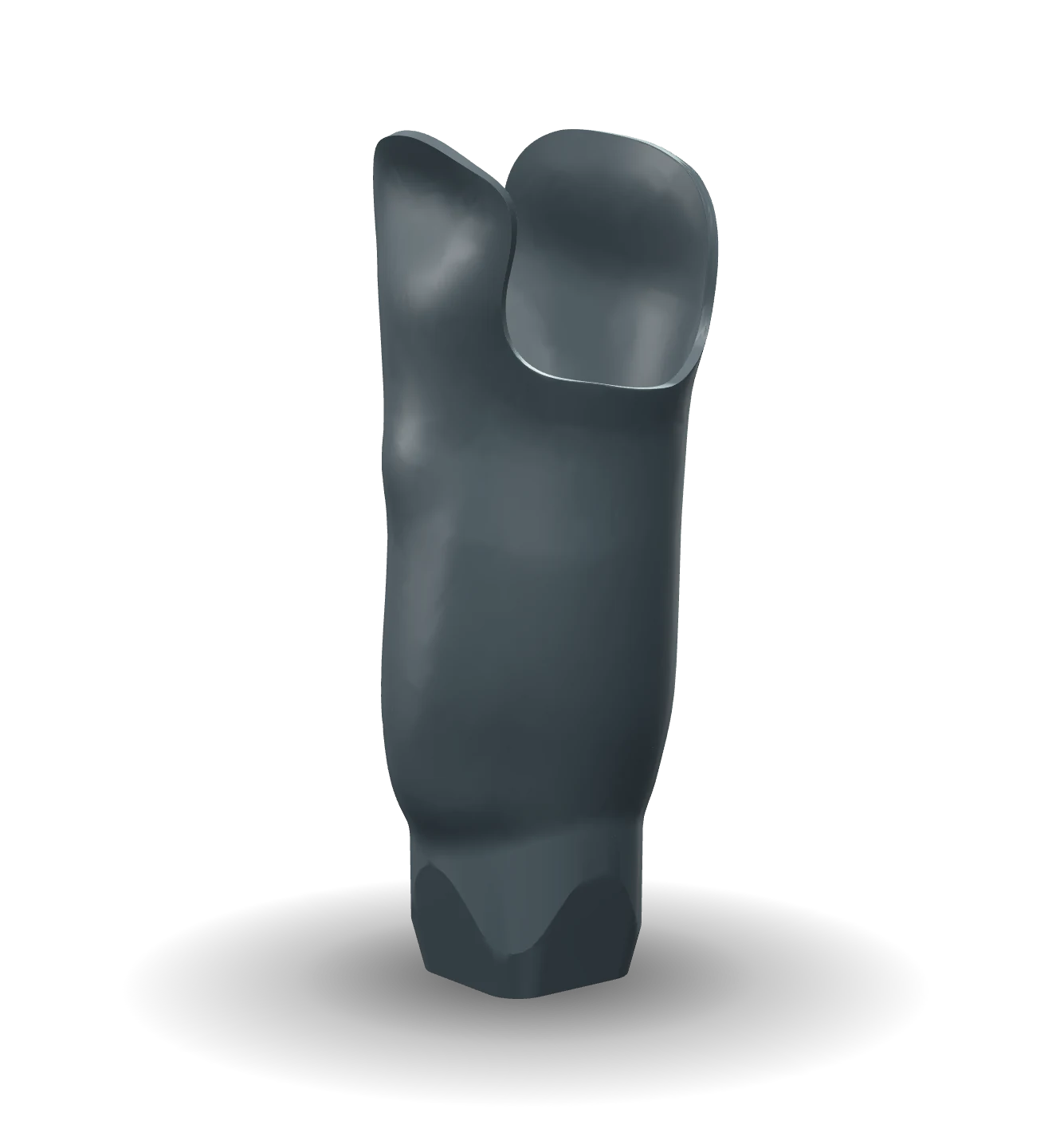

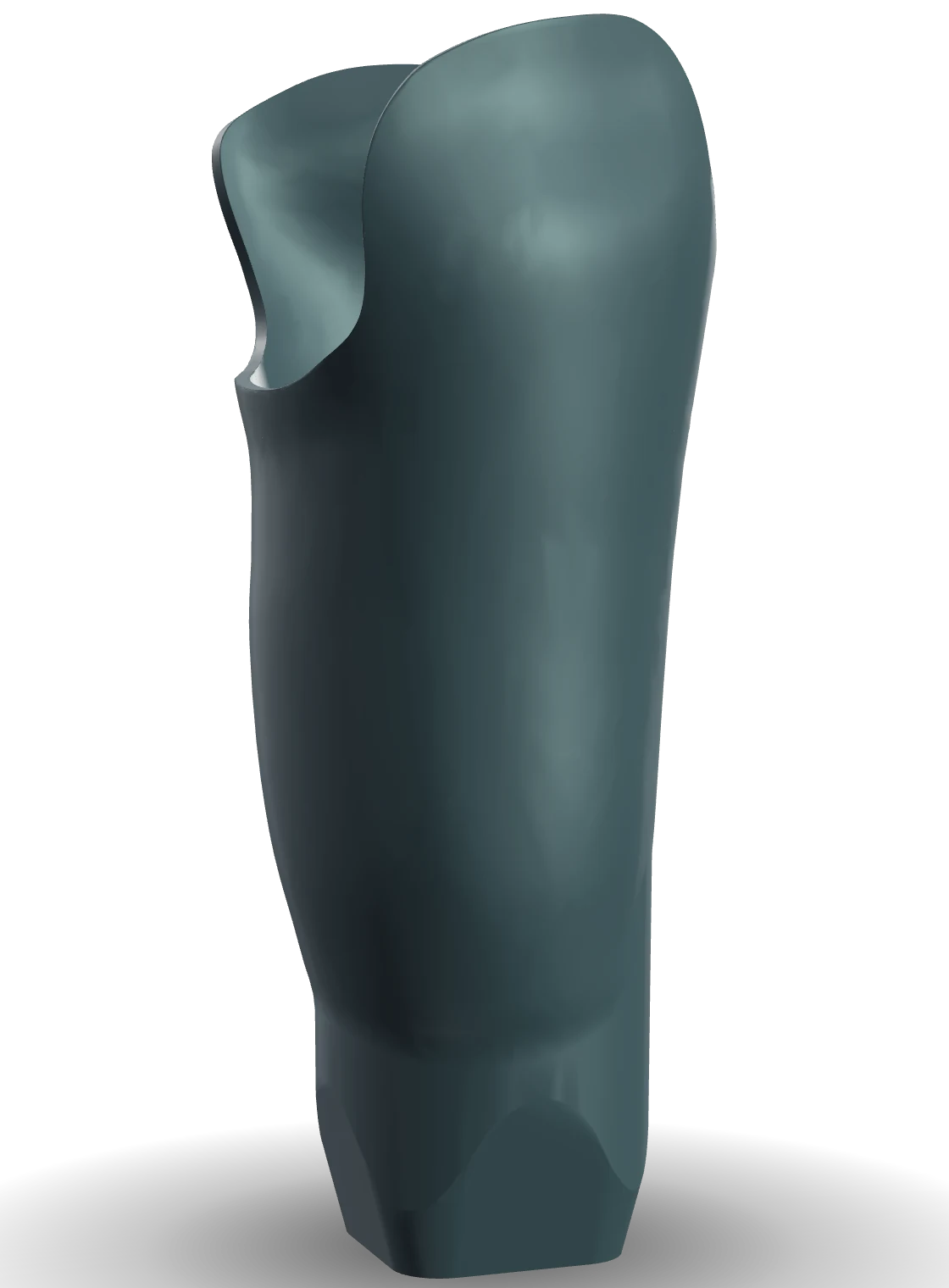

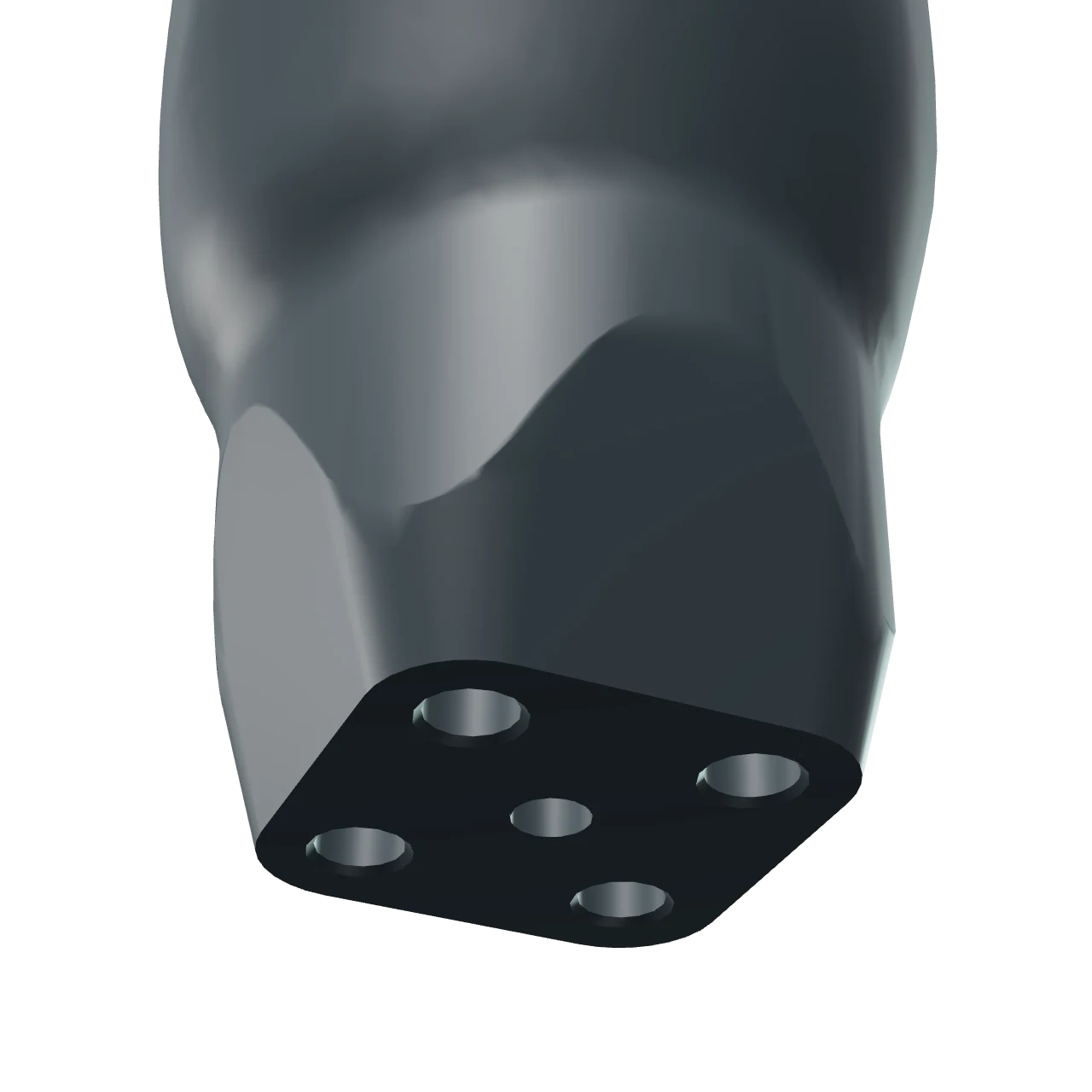

Definitive sockets are printed in a foamed carbon-fibre polyamide we developed ourselves, with metal inserts for the adapter bolts. Check sockets for the fitting trial come from the same limb and the same trimline.

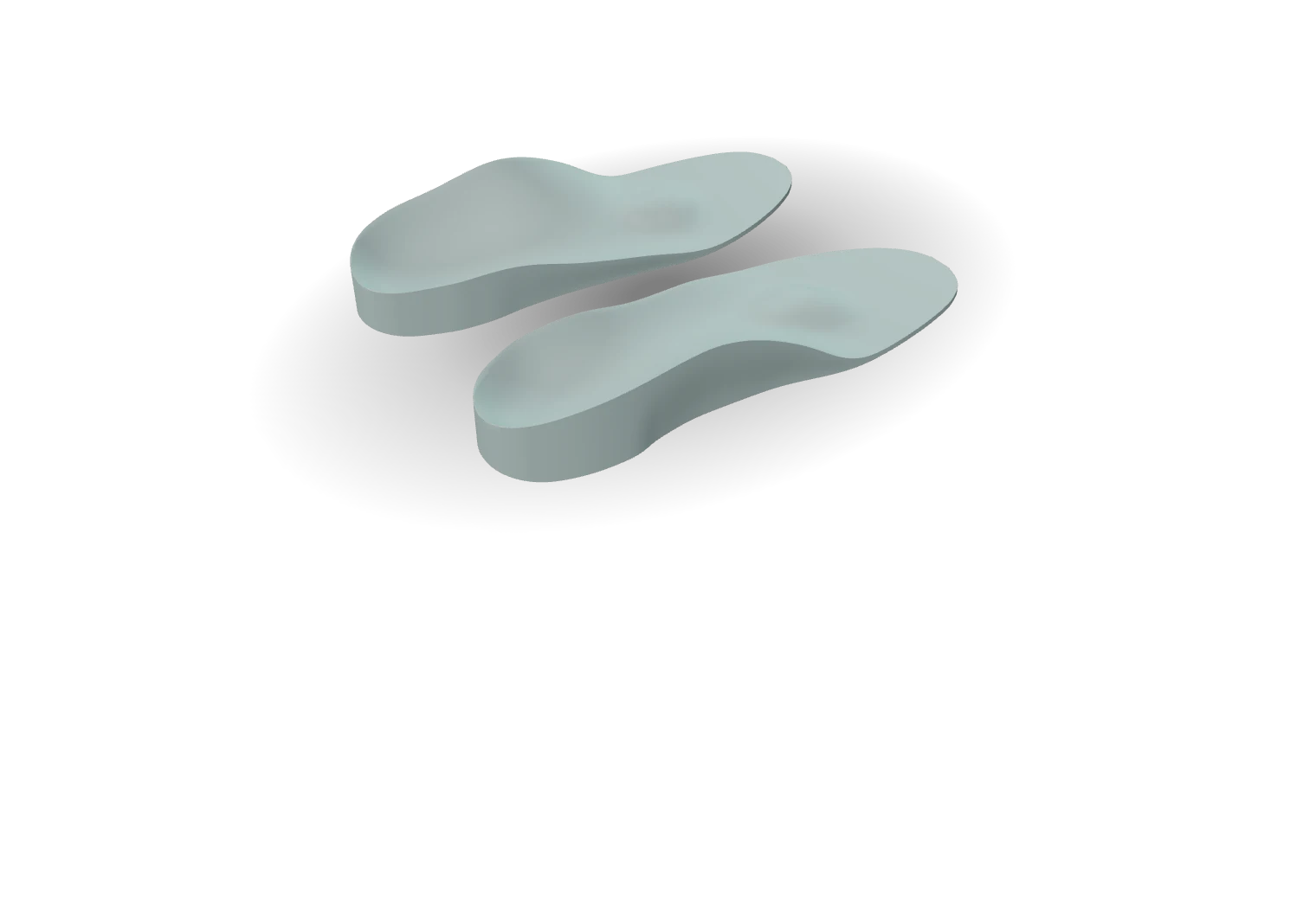

Insoles: TPU 95A, per foot
Each foot is printed to the stiffness you prescribe, with the clinic and the patient engraved in the sole, so a pair carries the name it was made for.
Prices per part. Nothing per seat.
Prices exclude VAT. Shipping within the Netherlands is included.
| Part | Made by us | Volume price | Download only |
|---|---|---|---|
| Insole pairTPU 95A, engraved | €55 | €50 from 10 a month€45 from 30 a month | €9 |
| Check socketfor the fitting trial | €120 | One price | €19 |
| Definitive socketfoamed carbon-fibre polyamide, metal inserts | €390 | €340 from 5 a month | €49 |
The volume price follows the number of parts of that kind you order in a calendar month. Designing, approving and every revision are free. There is no licence, seat fee or subscription.
Try it for a month, free.
We set up the software in an afternoon, train your team and make your first parts free. At the end of the month, you decide.
Other ways to get the same part.
Most clinics choose between a software licence, a printer of their own and a central lab. Each solves half the problem.
| Route | A CAD licence | A printer of your own | A central lab | Avesta |
|---|---|---|---|---|
| Up front | A licence, often thousands of euros a year | About €25,000 for an insole printer, plus its material | Nothing | Nothing |
| Who designs | You | You, in separate software | The lab, often from a catalogue shape | You, with every value in view |
| Who makes it | A manufacturer you find yourself | Your team, running the machine | The lab, at its own pace | We do, on our own farm |
| Per part | The manufacturer's price | Material, machine time and failed prints | The lab's price | From €45 an insole pair, €120 a check socket, €340 a definitive socket |
Figures for the other routes are typical market prices in the Netherlands, not quotes.
The clinical decisions stay yours.
Avesta Studio is design software. It measures and it builds what you ask for. It is written so that the decisions that belong to a practitioner cannot drift into the software.
You enter the wall.
A socket's wall thickness is typed by you, or comes from a recipe you name. The studio checks it after the build and never fills it in.
Nothing moves without your signature.
You sign each step. The optional assistant shows what it measured and what it proposes, with the source, and applies nothing on its own.
It measures. It does not diagnose.
The studio does not diagnose, prescribe or approve a fit. Those are yours, and the software is built so they stay that way.
An estimate is called an estimate.
The structural figure is an analytical estimate, not finite element analysis. It is never a substitute for physical testing to ISO 10328.
Your patients' data stays yours.
You remain the controller, and we process data under a data processing agreement. An order sends us the approved design and the patient's name.
Where we stand with the MDR.
Classification of Avesta Studio under the EU Medical Device Regulation has not yet been confirmed by a regulatory assessor, and we will not tell you it has.
Questions clinics ask first.
Do we need a printer or a licence?
No. Designing is free, there is no licence and no seat fee, and we make the part. If you would rather have it made elsewhere, you download the files for a fee.
Which devices can we design today?
Transtibial sockets, as check sockets and as definitive sockets, and insole pairs. All three can be ordered from us now.
Which scans does it read?
Socket Studio reads STL, OBJ and PLY scans of the limb or of a plaster cast. Insole Studio works from the shoe size and the weight, and can add a 3D foot scan and the archive of a supported pressure plate.
Where does our data go?
The studio runs on your own computer today, and an EU-hosted service is in preparation. When you order a part we receive the approved design and the patient's name, under a data processing agreement. Pressure archives and 3D foot scans are analysed in memory and never stored.
Which languages does it speak?
Dutch, German, English and Persian. Typed instructions to the assistant are understood in all four.
How is a part priced?
From the price list on this page. The volume price follows how many parts of that kind you order in a calendar month, and every order gets one price from us before anything is made.
What does the pilot include?
A month of the software, set up in an afternoon, a training session for your team, and your first parts free.
See it on your own scan.
Send us a scan before the call and we will design on it with you. Twenty minutes, screen shared.
Or start the free pilot straight away: we set everything up with you.
